Hydraulic Winch Runva HWP20000Y3P 9 t
€ 3,029.00
Hydraulic Winch Runva HWN10000I 4,5 t
HWN10000I-YDRF
€ 1,055.00
Tax included

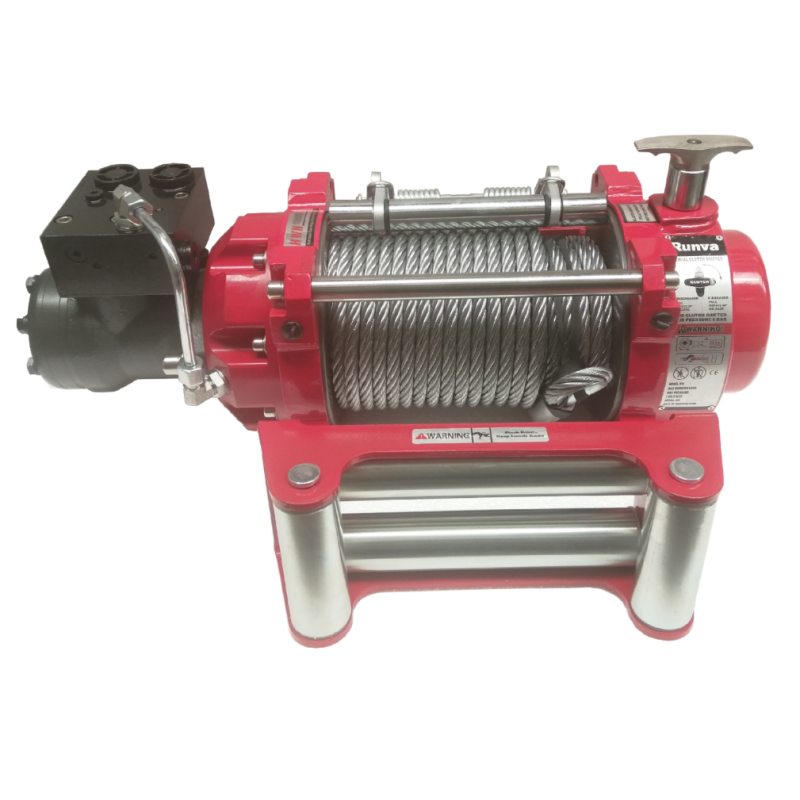

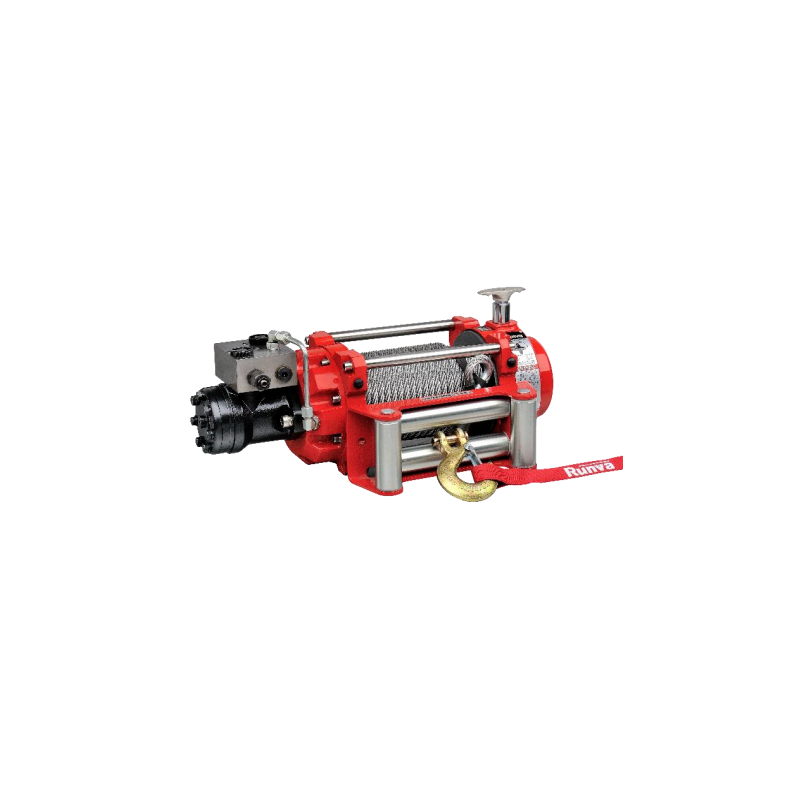

Runva HWN 10000I lbs/4,5 t hydraulic industrial winch designed for special vehicles and machinery – car carriers, trailers, tractors, agricultural machinery, small trucks, tugboats, etc.
A new model of Runva hydraulic winch characterized by high quality. The winch has a durable 3-stage planetary (epicyclic) gearset and a hydraulic brake. The winch complies with the IP67 standard – protected from dust, rain and dirt.
The winch is equipped with a manual clutch lever (can be equipped with a pneumatic lever on request).

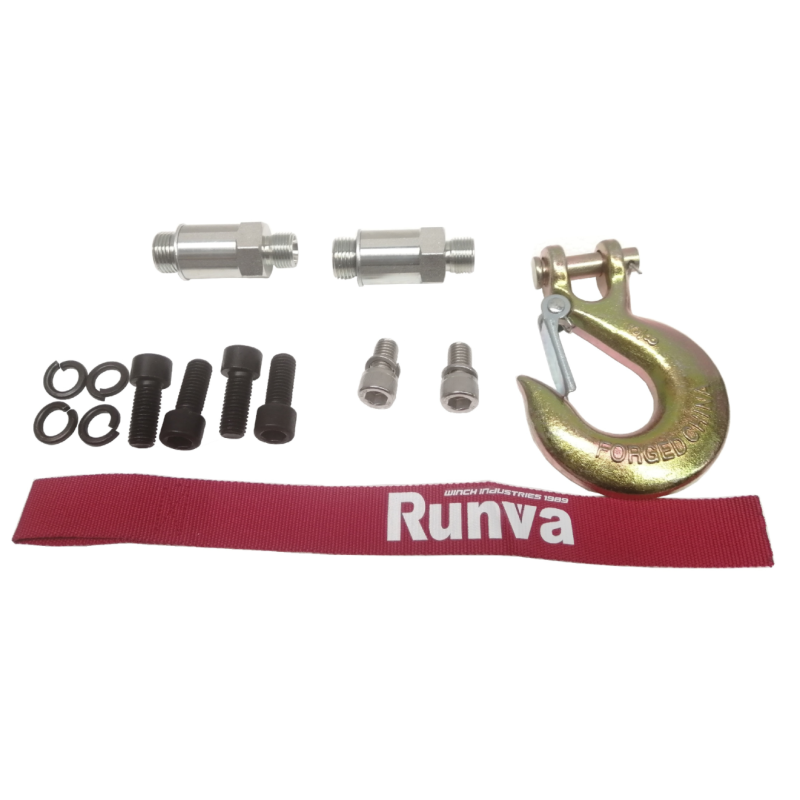

Set contains:
- steel cable
- hook with safety strap
- cable guide
- cable tensioner
- mounting bolts
Warranty and post-warranty service, supply of spare parts.
Hydraulic connection hoses and wireless control are ordered separately.
HWN10000I-YDRF
Data sheet
- Weight (kg)
- 53
- Rated Line Pull (Lbs/Kg)
- 10000/4535
- Gear ratio
- 25,5:1
- Rope dimensions (mm x m)
- 10,2 x 25,5
- Mounting bolt pattern (mm)
- 254 x 114,3

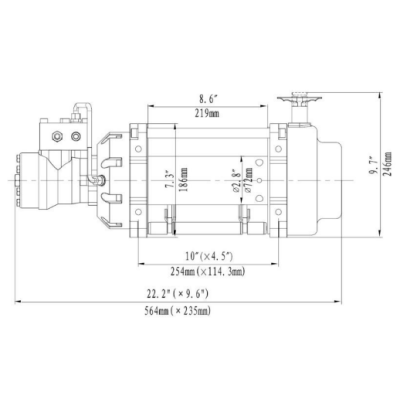

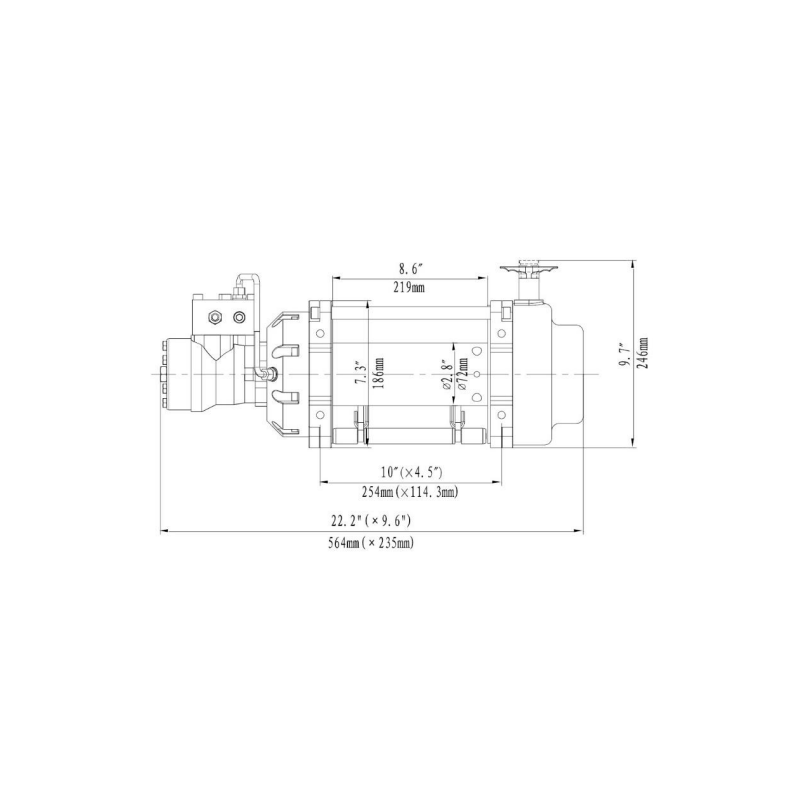

- Winch Dimensions (LxDxH mm)
- 566 x 235 x 246
- Waterproof
- IP67
- Winch type
- Hydraulic
- Rope type
- Steel
- Oil Flow Rate l/min
- 15-45
- Engine displacement cm³/rev.
- 65
