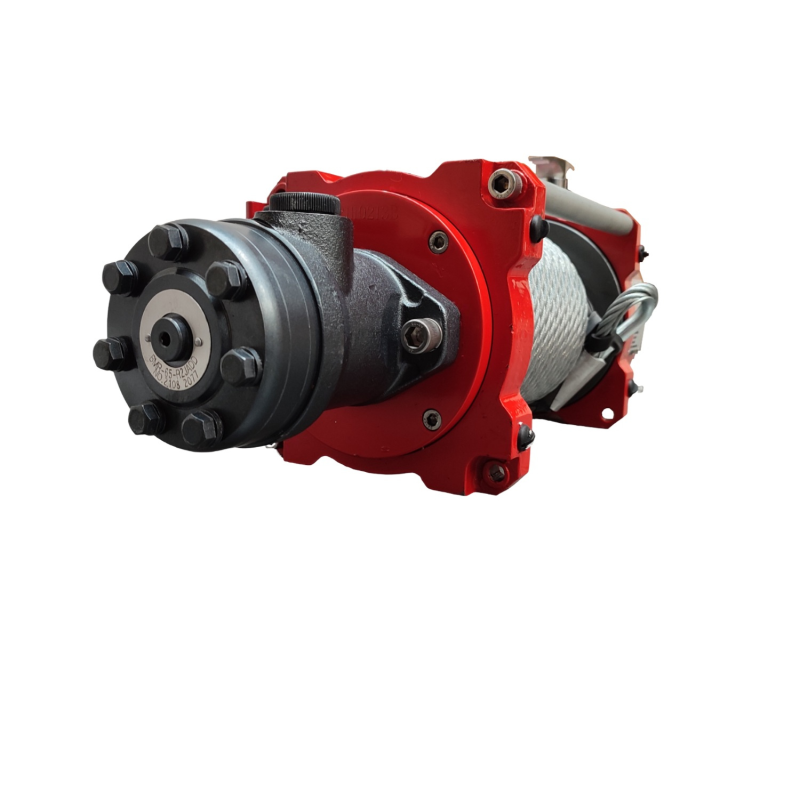

Hydraulic Winch Runva HWN11000 4,9 t
HWN11000YDRF
€ 935.00
Tax included

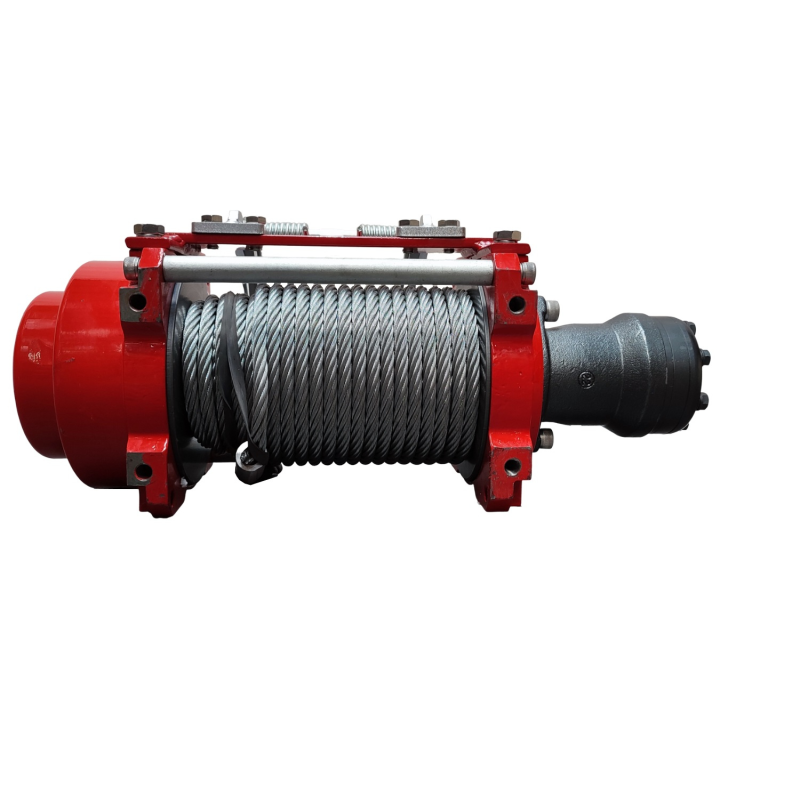

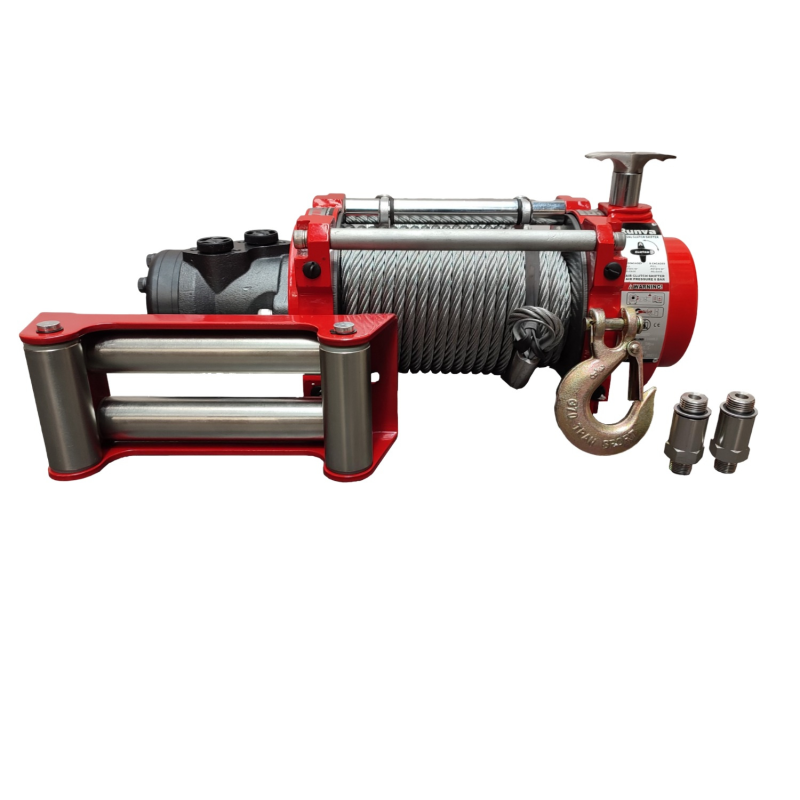

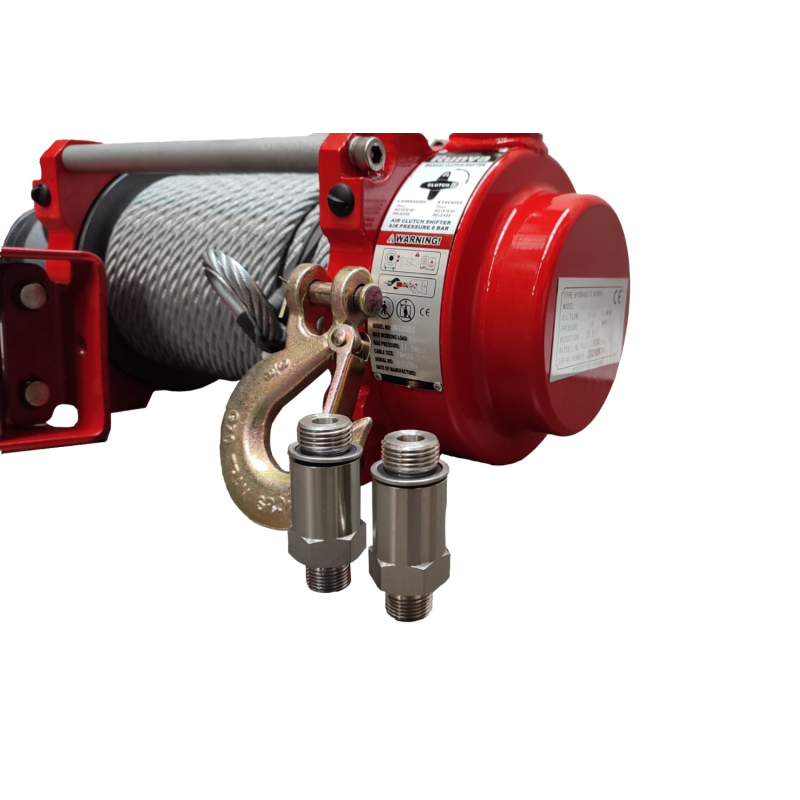

Runva HWN 11000 lbs/4,9 t hydraulic industrial winch designed for special vehicles and machinery – car carriers, trailers, tractors, agricultural machinery, small trucks, tugboats, etc.

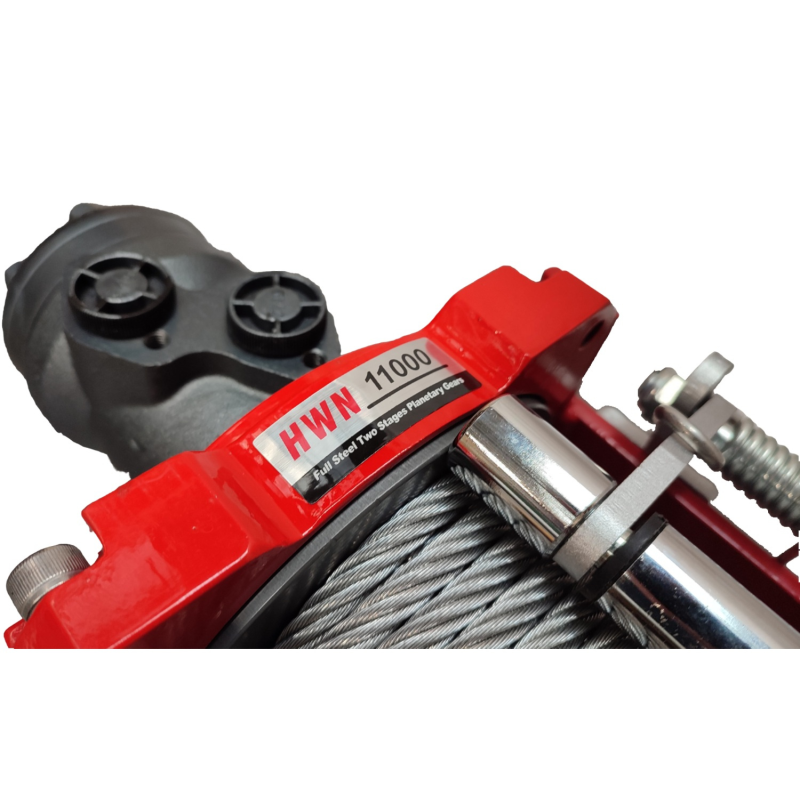

A new model of Runva hydraulic winch characterized by high quality. The winch has a durable 3-stage planetary (epicyclic) gearset and a hydraulic brake.

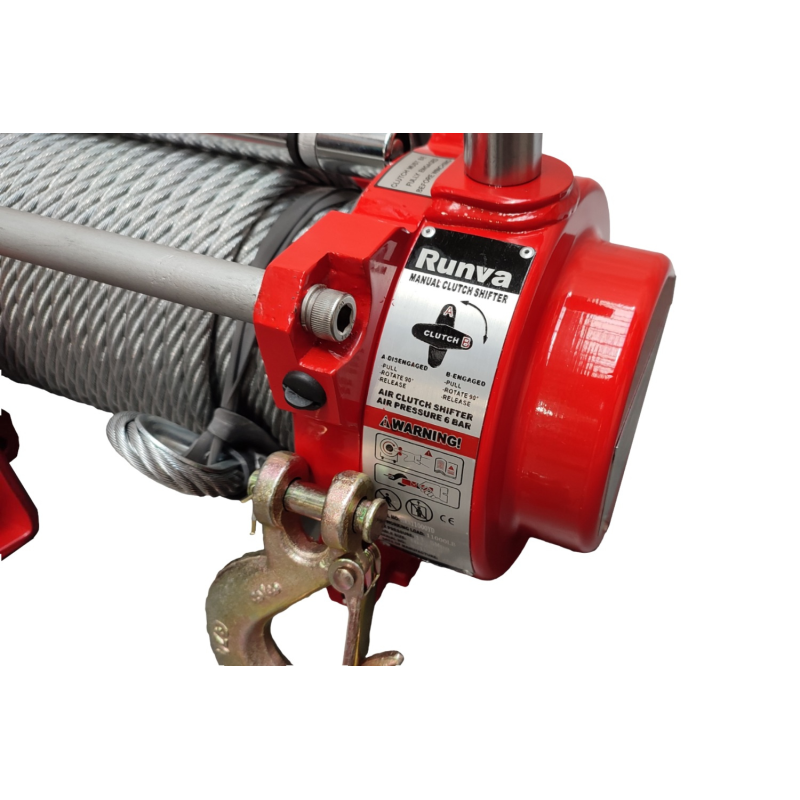

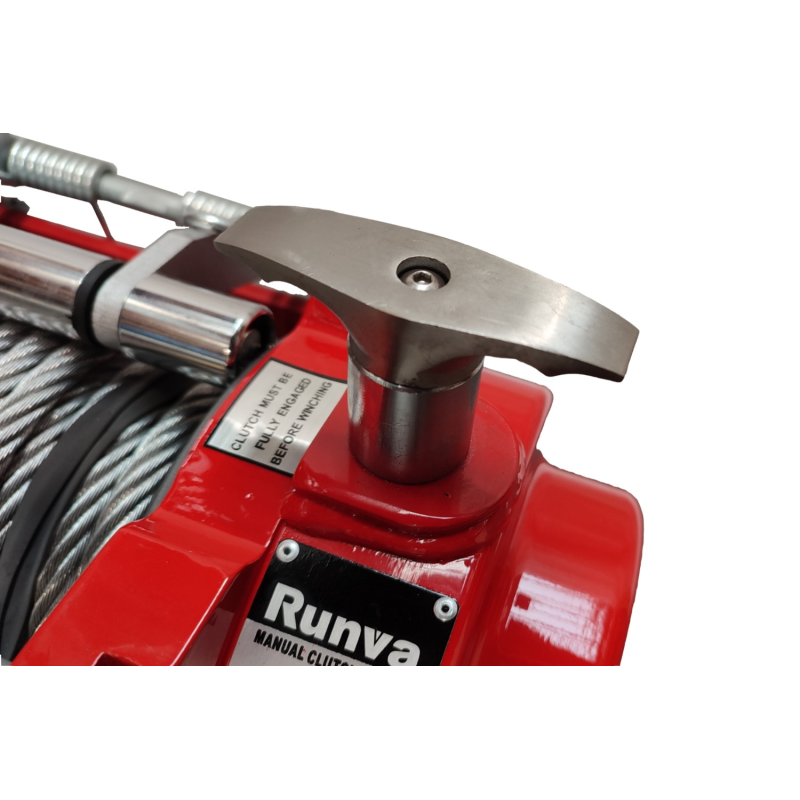

The winch is equipped with a manual clutch lever (can be equipped with a pneumatic lever on request).

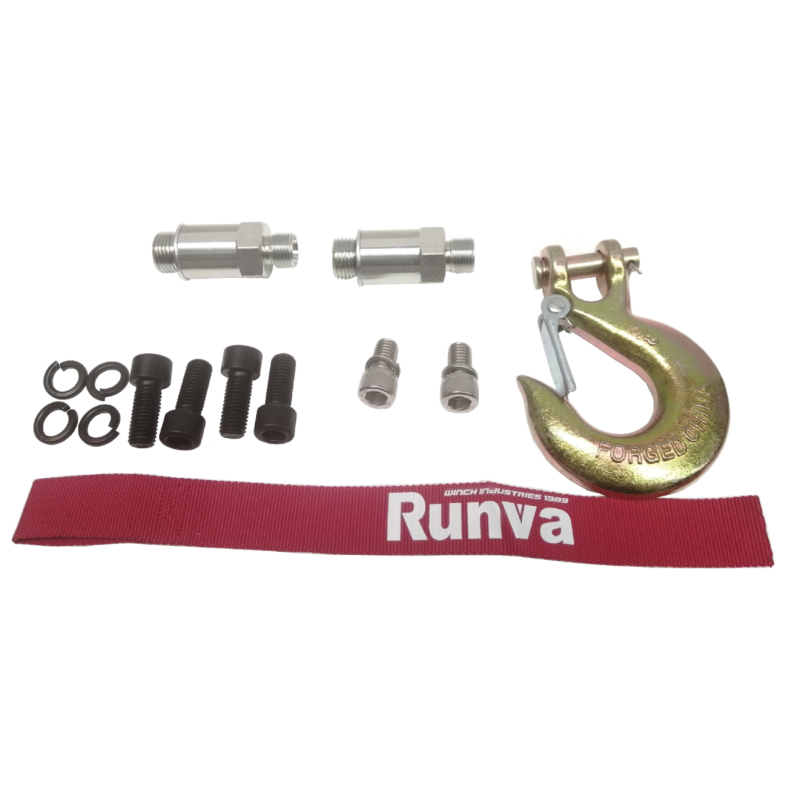

Set contains:
- steel cable
- hook with safety strap
- cable guide
- cable tensioner
- mounting bolts
Warranty and post-warranty service, supply of spare parts.
Hydraulic connection hoses and wireless control are ordered separately.
HWN11000YDRF
Data sheet
- Weight (kg)
- 53
- Rated Line Pull (Lbs/Kg)
- 11000/4989
- Gear ratio
- 25,5:1
- Rope dimensions (mm x m)
- 10,2 x 25,5
- Mounting bolt pattern (mm)
- 254 x 114,3

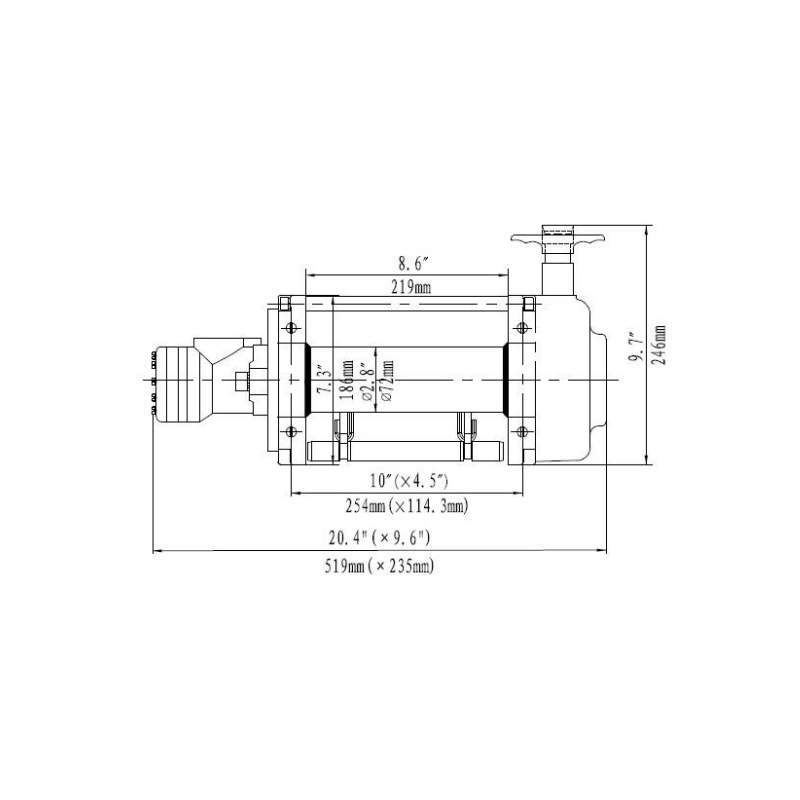

- Winch Dimensions (LxDxH mm)
- 519 x 235 x 291
- Winch type
- Hydraulic
- Rope type
- Steel
- Oil Flow Rate l/min
- 15-45
- Engine displacement cm³/rev.
- 65
